LNG & LPG CRYOGENIC INSULATION


- Compared with polyurethane foam that is applied same industry, SAMKUN developed the product is thinner but increasing thermal conduction efficiency. This product makes 30% lower price on material, construction and improves production progress.

- Development about SAMKUN’s Aeropoly is completed. It can be applied LNG & LPG LIQID/VAPORIZER PIPE LINE and TANK SPARY. It is under construction in various fields for various customers.

- Aeropoly applies aerogel that has lower thermal conductivity than urethane foam on 1st layer. So it can make thinner insulation.


PART 1) LNG & LPG PIPE INSULATION


LNG & LPG PIPE INSULATION
LNG & LPG PIPE INSULATION


[LNG & LPG PIPE INSULATION]

Undiluted chemical : Urethane form block shapes by continuous shoot line and mold about injection type of PPG & MDI

Application : Applied surface required dimensional stability and resistance/friction coefficient for vibration like pipe line of LNG & LPG, etc.

Scope : It can be applied easily up to -163 degree / 400mm thickness to LNG & LPG.


INSULATION Apply aerogel on 1st layer
Apply aerogel on 1st layer


Lower thermal conductivity with thinner insulation
Result: Lower thermal conductivity with thinner insulation


rigid urethane foam making long elbow & short elbow
3D wire cutting on rigid urethane foam making long elbow & short elbow


INSULATION New item is developed
New item is developed. Reducing cost and time for construction by making thinner foam with lower thermal conductivity and simplifying 2nd stacking operation to 1st stacking one.

INSULATION Making cost reduction and securing competitiveness
Making cost reduction and securing competitiveness by developing and improving various materials.

INSULATION 1st layer Applying YARN MAT
1st layer construction leads 30% of cost reduction and quality improvement by changing MAT [Applying YARN MAT]

INSULATION GEL COAT Applying YARN MAT
Surface quality is excellent by applying GEL COAT [Applying YARN MAT]

LNG FGSS Line Cryogenic Insulation
LNG FGSS Line Cryogenic Insulation

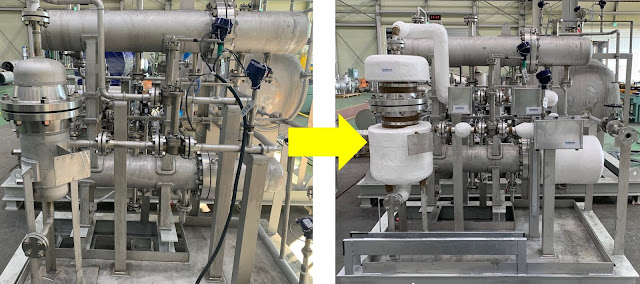

LNG LIQUID & VAPORIZER Line Heater Skid Unit
LNG LIQUID & VAPORIZER Line Heater Skid Unit

LNG Bunkering LIQUID & VAPORIZER 3D Modeling
LNG Bunkering LIQUID & VAPORIZER 3D Modeling



LNG BOG COOLER UNIT Cryogenic Insulation
LNG BOG COOLER UNIT Cryogenic Insulation

Exhibit LNG cryogenic insulation on OFFSHORE KOREA 2020
Exhibit LNG cryogenic insulation on OFFSHORE KOREA 2020_2
Exhibit LNG cryogenic insulation on OFFSHORE KOREA 2020



PART 2) LNG & LPG TANK SPRAY INSULATION

LNG & LPG TANK SPRAY INSULATION
LNG & LPG TANK SPRAY INSULATION


[LNG & LPG TANK SPRAY INSULATION]

Undiluted chemical : Spraying/shooting PPG & MDI(shooting type) using spray equipment for rigid urethane form

Application : LNG & LPG tank type storage Apply spray insulation on outside and urethane on sealed inside

Scope : Our company specification covers thickness 300~450mm to LNG fuel tank in accordance with urethane undiluted solution stabilization


Cryogenic Tank Spray Insulation
Cryogenic Tank Spray Insulation



[Development undiluted chemical for PPG & MDI spray]

Development undiluted chemical for PPG & MDI spray
Development undiluted chemical for PPG & MDI spray


[Using remarkable spray gun]

Using spray gun from GRACO, U.S.A
Using spray gun from GRACO, U.S.A


Using D-GUN
Using FUSION GUN
Using D-GUN & FUSION GUN




SAMKUN CENTURY CO., LTD is a global company specialized in eco-friendly water treatment that satisfies customers with its best technology and service in the field of water treatment and piping coating.


For an inquiry or order, please feel free to contact us.

SAMKUN CENTURY CO., LTD

Tel.: +82-55-338-3030

E-mail : sk@samkunok.com
